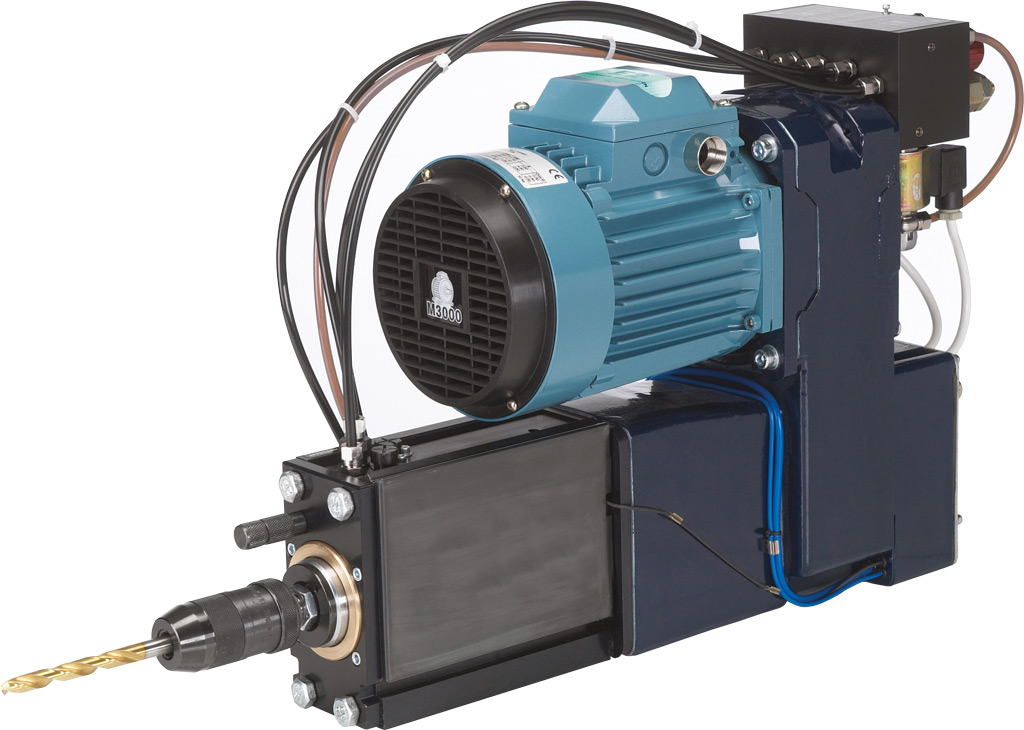

Electro hydraulic drilling unit BE 55

BE 55 is a powerful yet compact electro-hydraulic series of units. The electric motor runs the spindle while the feed is hydraulically powered and controlled. The hydraulic feed control together with position switches makes it possible to include functions such as multi-wall drilling, rapid advance and automatic chip removal. The units are available in two different taper options as well as with multi-spindle heads.

Facts:
Power
370–2 700 [W]
Speed (idle)
250–7 780 [rpm]
Torque*
41,8–0,90 [Nm]
Thrust (max)
6 000 [N]
Stroke (max)
120 [mm]
Min. CC
140 [mm]
Min CCSS**
140 (MSH: 14)
Run-Out***
<0,03 [mm]
Functions:
Compact yet powerful design
Integrated hydraulic system
Long stroke – 120 mm
Ideal for flow drilling
Low noise level
