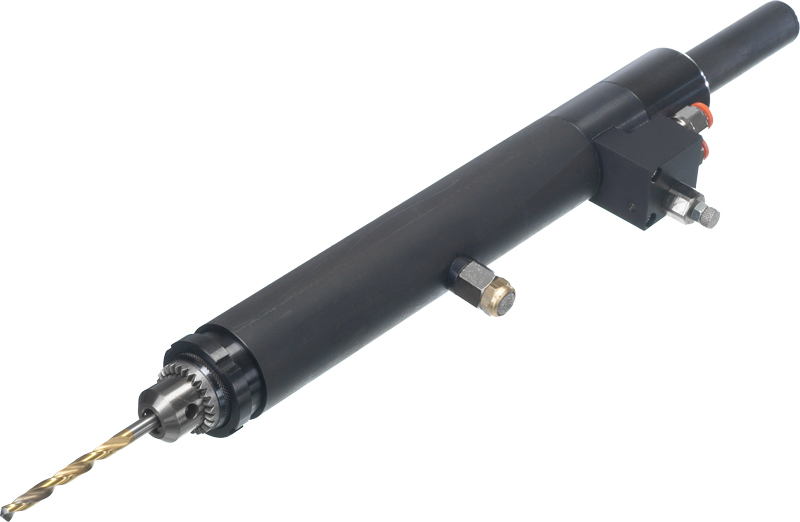

    Air operated drilling unit BE 21

    The BE 21 is an air operated drilling unit with feed. The design of the BE 21 makes it very suitable for drilling blind holes, reaming etc. We also offer a stainless version of this unit, the BES 21, ideal for operation in environments where water or other corrosive fluids are present.

    Facts:
    Power
    250 [W]
    Speed (idle)
    500–15 000 [rpm]
    Torque*
    9.9–0.25 [Nm]
    Thrust (max)
    665 [N]
    Stroke (max)
    50 [mm]
    Min CCSS**
    45 [mm]
    Run-Out***
    <0.05 [mm]
    Functions:
    Extremely compact (outer Ø 45 mm)
    Positive stop guarantees high degree of accuracy
    Low air consumption
    Low noise level
    Available in stainless design for corrosive environments
