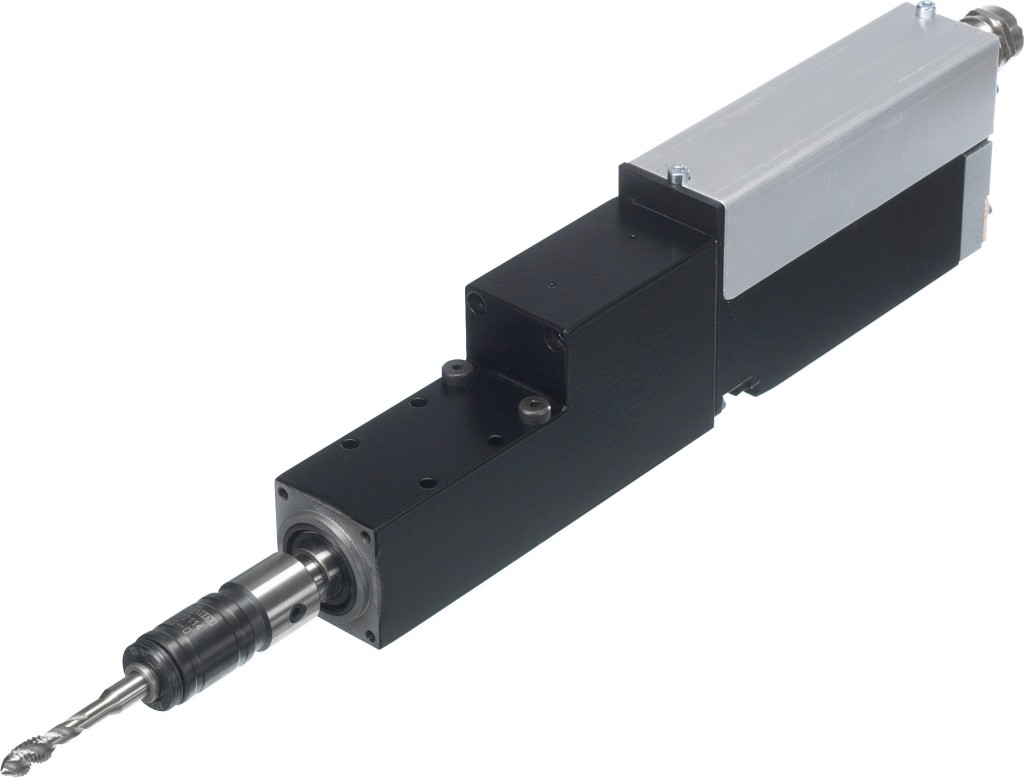

Pneumatic lead screw tapping unit LS 22
The LS 22 tap unit consists of a vane motor powered by compressed air,
a planetary gearbox, lead screw, nut and a follower with cams to activate built-in switches. The design of the LS 22 tap unit is compact yet highly functional. The lead screw ensures high repeatability for threading operations.
Facts:
Power
160 [W]
Speed (idle)
240–2 400 [rpm]
Torque*
10,8–1,1 [Nm]
Stroke (max)
51 [mm]
Min CCSS**
42 (MSH: 11) [mm]
Functions:
Compact yet powerful
Hydraulic feed control for the whole stroke
Low noise level
Mechanical or sensor activate depth control
